Summary

One of our latest offerings in our diesel kits range is our 0-4-0 chassis based on freelance design.

This versatile frame and powerful motor will provide an excellent base for any builder looking to create their own diesel or steam-outline locomotive on quality Roundhouse parts.

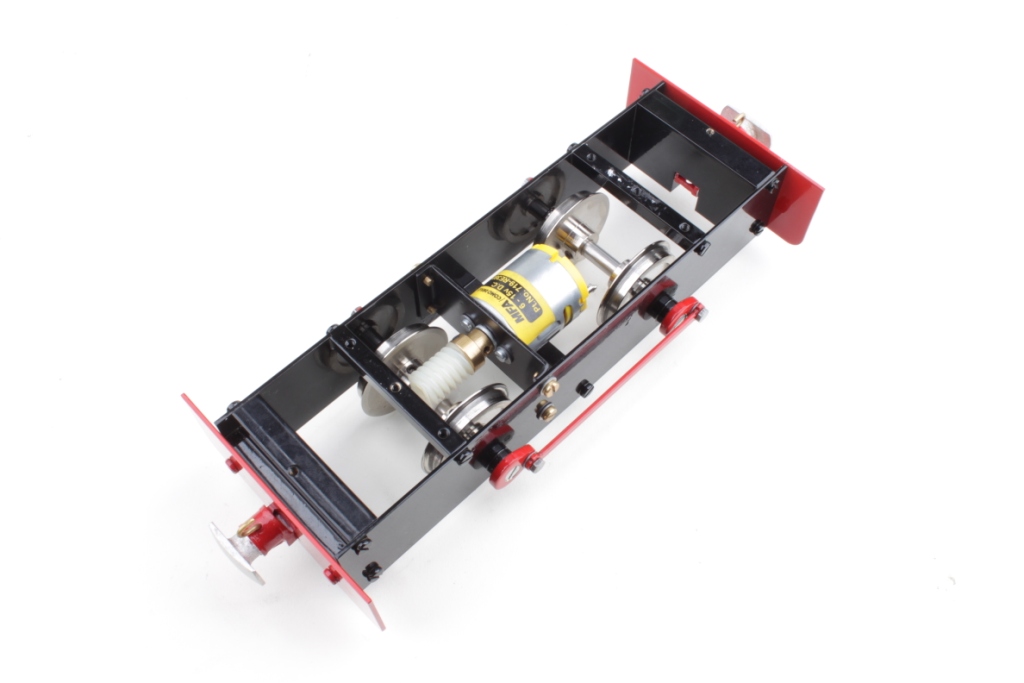

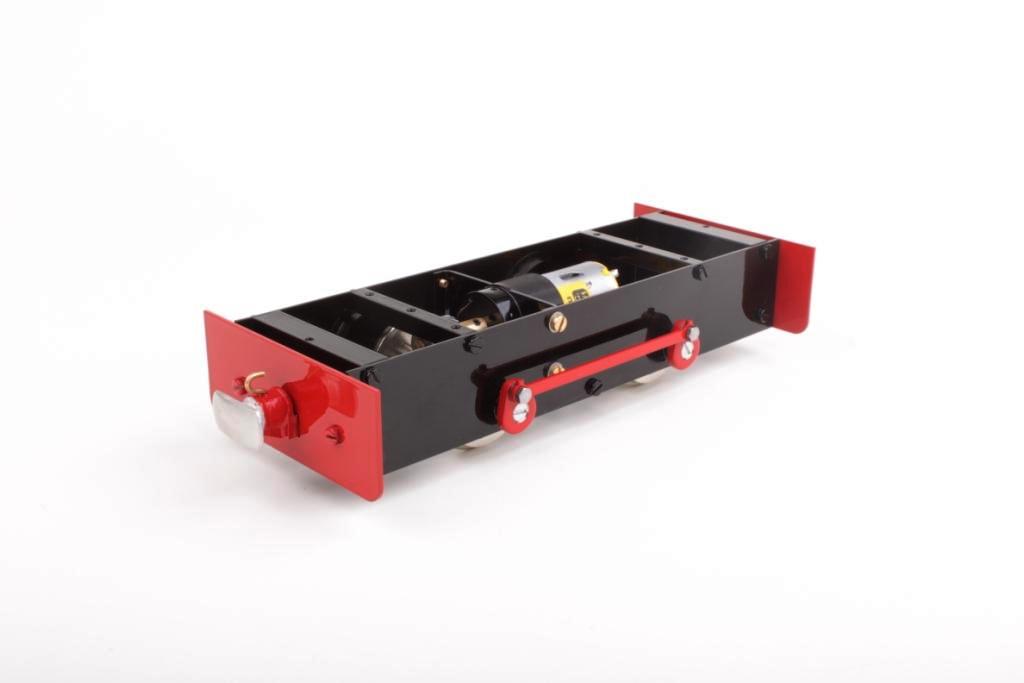

The parts are supplied unpainted in component form and include full instructions. The completed kit is shown painted here as an example.

To see the instructions for this kit Click Here.

Technical specifications

0-4-0 chassis based on freelance design.
Machined brass and stainless steel laser cut parts.
High quality geared motor and precision made nylon worm gear set.
Supplied with a MFA motor rated between 6V to 15V. This is limited to 7V - 14V when used in conjunction with a Roundhouse-Locoglyde speed controller.
Supplied with uninsulated wheels as standard. Insulated wheels are available at an extra cost.
Adjustable between 32mm and 45mm gauge.
Length over center buffers: 240mm
Buffer width: 87mm
Frame width: 57mm
Height: 45mm
Distance between wheel centers: 80mm
Weight: 1021g
Batteries and R/C controller not included in this kit.
