040D

Summary

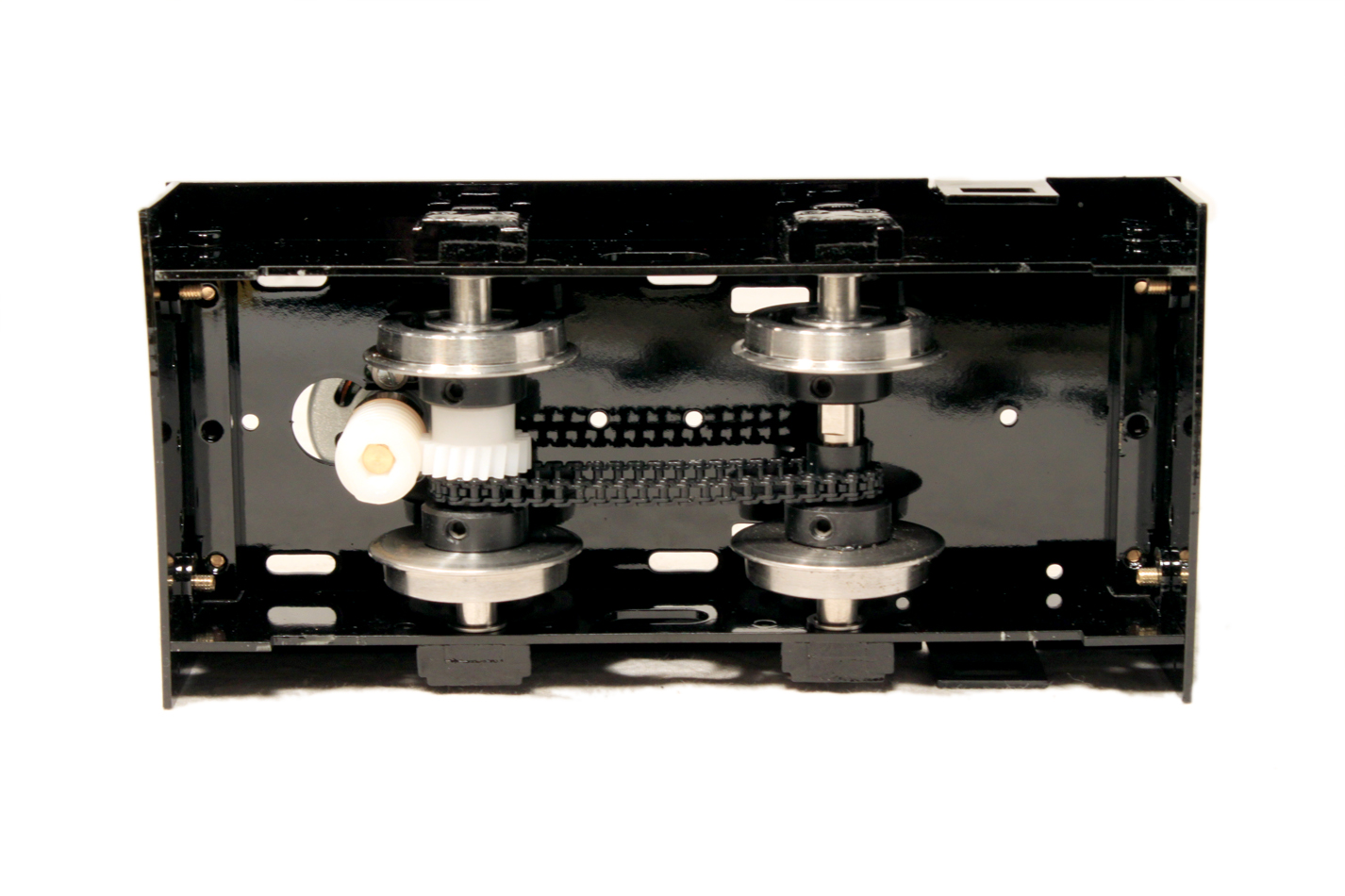

Fully assembled and painted this 040 ready to run chassis, with motor, is just waiting for you to drop a body on it of your own design

This hardwearing chassis with powerful motor marries Roundhouse reliability with your own creativity. We can also supply our Locoglyde electronic speed controller for use with this chassis. For your battery requirements we always recommend our own supplier Strikalite for all your rechargeable battery needs.

Price code: 040D

Technical specifications

0-4-0 diesel outline chassis based on freelance design.
Machined brass and stainless steel laser cut parts.
High quality geared motor and precision made nylon worm gear set.
Supplied with a MFA motor rated between 6V to 15V. This is limited to 7V - 14V when used in conjunction with a Roundhouse-Locoglyde speed controller.
Chain driven rear axle.
Supplied with insulated wheels as standard.
Adjustable between 32mm and 45mm gauge.

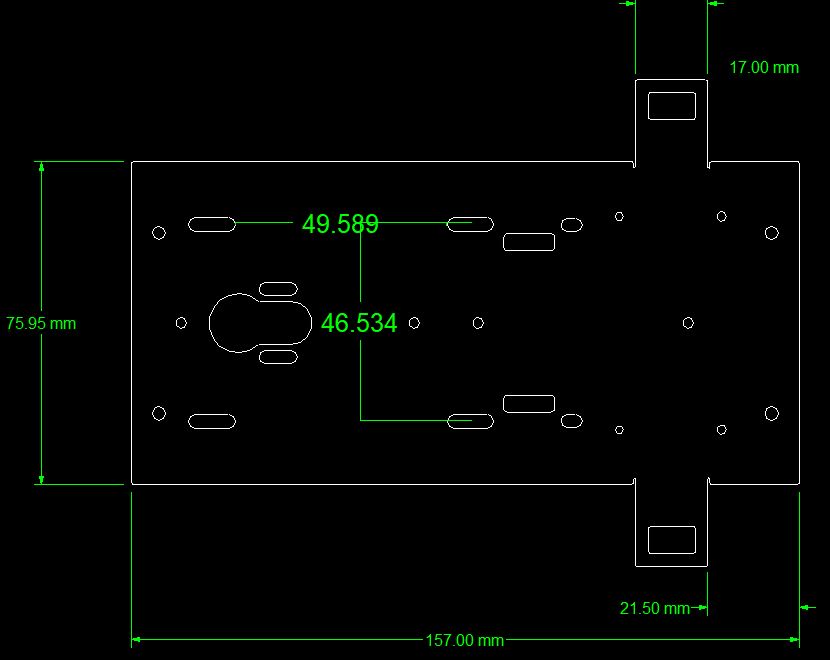

Length over buffer beams: 157mm
Width: 76mm
Height from rail head to top of motor: 70mm
Distance between wheel centers: 56mm
Weight: 552g
